Calculate railing panels one run at a time. For each straight run, subtract only verified openings or connection allowances, then divide the clear distance into compatible panel lengths. Round according to the actual module plan—not a single perimeter formula—and add separate stair panels for each flight.
Why perimeter divided by panel length fails
A 30-foot perimeter does not necessarily equal five 6-foot panels. Corners, gates, stairs, walls and post widths divide the perimeter into distinct openings. A remainder on one run cannot automatically be moved to another. The panel count must follow the geometry.
Use the run formula
For a preliminary run, use: panel count equals the number of compatible modules needed to cover that run after verified openings are reserved. A simple ceiling division can estimate quantity only when equal bays and one allowed maximum length are appropriate. The final count comes from the selected module combination and post layout.
Worked example
Consider a 12-foot front run, an 8-foot side run and a 4-foot return, plus one stair flight. A modular concept could use two 6-foot level panels on the front, one 8-foot panel on the side, one 4-foot panel on the return and one stair panel sized to the verified slope. Preliminary total: four level panels plus one stair panel. Post and bracket dimensions must still be applied.
Mixed lengths can improve the count
Suppose a 13-foot run can be organized as 7 + 6 instead of three shorter sections. The mixed combination may reduce an intermediate post and simplify the material list. Compare against view, attachment positions and available packs. The goal is not the fewest panels at any cost; it is the most coherent verified layout.
Keep a panel schedule
Create a small table with run ID, endpoint types, clear opening, chosen modules, cuts and panel quantity. Sum only after every run is assigned. This schedule prevents duplicate counting around corners and makes it easier to check the order against the drawing.
Use a planner for irregular layouts
Manual arithmetic becomes difficult when a deck includes several returns, existing columns, stairs and a gate. The Egadis planner represents these as layout elements and can organize recommended panels and posts into a material list, which is more useful than a linear-foot-only calculator.
Put the answer into practice
Build a panel schedule without a total row. Complete every run first, including stairs and returns, then add the total. Delaying the sum prevents the project from being forced into an early quantity that does not match the final geometry.
The layout file should be auditable in both directions: every run points to components, and every component points back to a run or special condition. This two-way check is the most reliable defense against missing, duplicated, or unexplained quantities.
Before closing this decision, answer the core query—“how many railing panels do I need”—in one or two project-specific sentences. Include the actual location, relevant run or opening, selected system, and the remaining verification step. If the answer still depends on a generic assumption, keep the decision provisional and carry that assumption into the project checklist.
Decision checklist
- Name every run
- Code every endpoint
- Test at least two module combinations
- Count shared physical posts once
- Audit every component against the drawing
Frequently asked questions
Do I round up total linear feet?
Not by itself. Assign modules to each run and round only within that run’s verified plan.
Does a gate reduce panel count?
Reserve the gate opening first; then calculate the panels required on both sides.

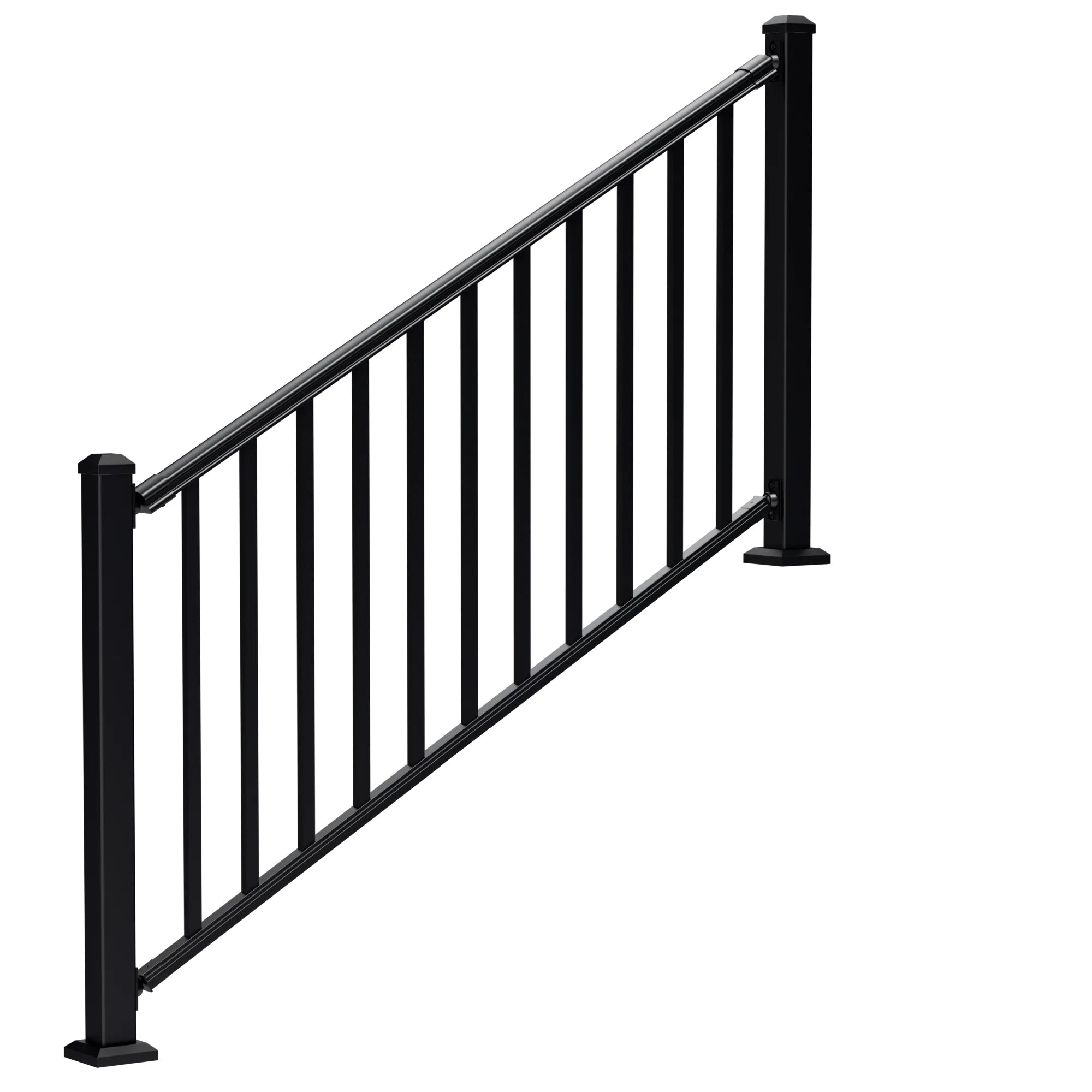

Are stair panels counted separately?
Yes. Each stair flight uses its own stair-compatible panel plan.
Can I combine different panel lengths?
Yes, within a compatible modular system and verified layout.
What should the panel schedule include?
Run ID, endpoints, clear distance, modules, cuts and quantity.
Plan the next step
Enter every run instead of a perimeter total. The Egadis planner can turn the labeled layout into panel and post quantities for review before ordering.
Use the Egadis Aluminum Railing Planner to organize the project. When the plan is verified, explore Egadis modular aluminum railing.
