Measure stairs for railing by recording total rise, total horizontal run, number of risers, stair angle, and the sloped distance between intended rail connections. Mark the upper and lower post positions first. Use the stair-panel manufacturer’s measurement method and verify the final field dimensions before any cut.
Start with a side view
Sketch the staircase from the side. Mark the upper landing, lower landing, tread nosings and intended post locations. A side view makes it obvious that the railing follows a diagonal path and prevents the horizontal run from being mistaken for rail length.
Record the five-number stair set
Write down total rise, total horizontal run, number of risers, number of treads and the measured sloped connection distance. The rise and run can estimate the diagonal with the Pythagorean relationship, but the final product dimension must follow the actual posts and bracket locations defined by the selected system.
Measure the stair angle
The angle can be calculated from rise and run or checked with an angle tool. It determines whether the stair brackets and panel adjustment range fit the staircase. Measure a consistent flight rather than one imperfect tread, and compare the result with the current installation guide.
Fix the endpoints before the final number
An upper post set back on the landing and a lower post positioned beside the bottom tread create a different sloped distance from posts placed elsewhere. Resolve these positions structurally, then take the final measurement. Also note whether the upper rail transitions directly into a level section.
Use an estimate only for product selection

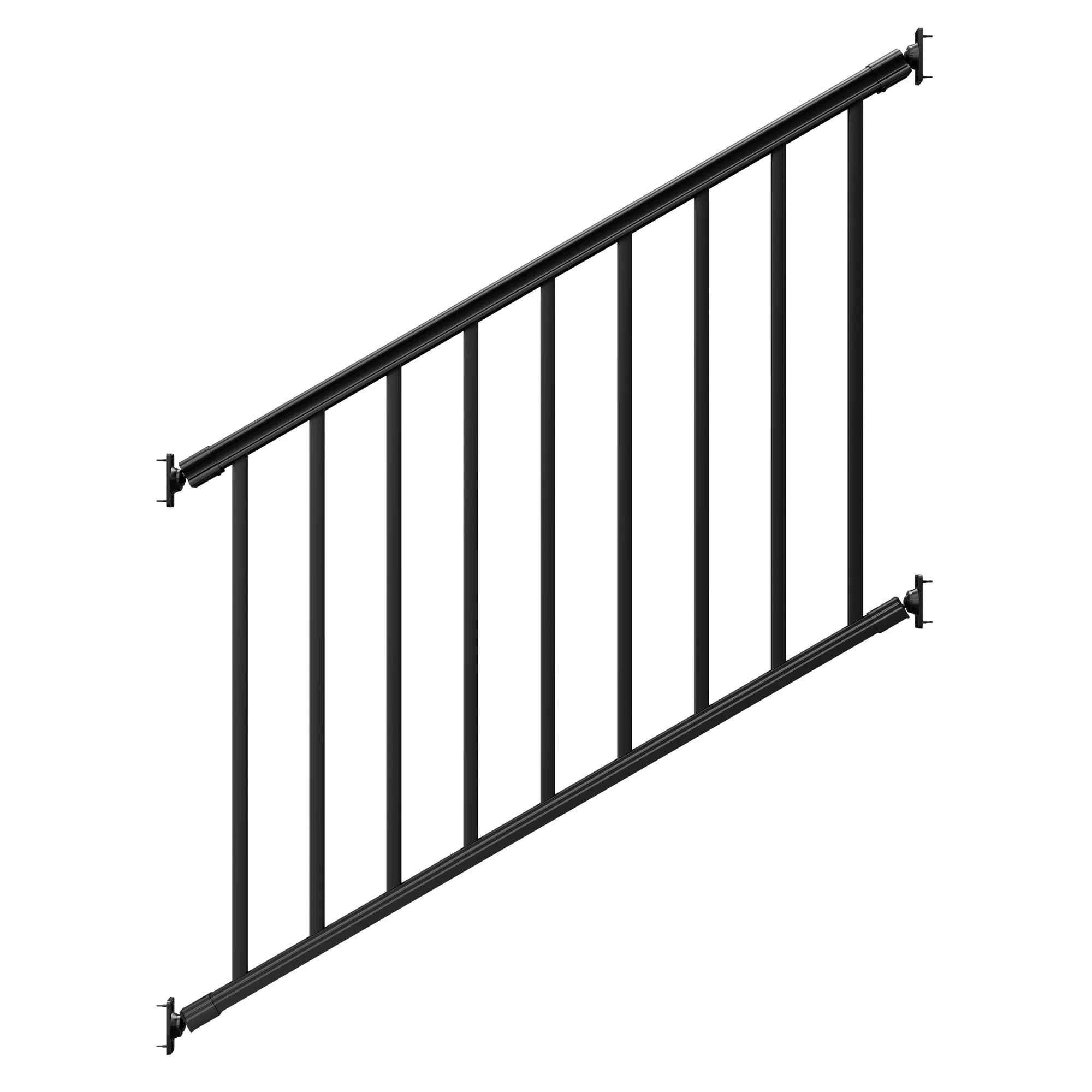

A rough diagonal helps choose a nominal stair panel long enough for the project. It is not permission to cut. After posts or connection points are established, remeasure the exact bracket-to-bracket distance and confirm baluster spacing and end clearances under the manufacturer’s method.
Add the flight to the whole plan
Name each flight S1, S2 and so on. Link S1 to its upper and lower level runs in the drawing. The Egadis planner treats stairs as distinct segments, helping keep stair panels, post options and transitions in the same bill of materials as the deck rails.
Put the answer into practice
Measure total rise and run, calculate a rough diagonal, and then measure the intended connection line directly. The difference reveals why a mathematical estimate is useful for selecting a nominal panel but cannot replace the manufacturer’s final field method.
Preserve rough measurements and final verified measurements in separate columns. Add the date, measurement method, and person checking the field dimension. That simple history makes later corrections understandable and protects the final cut list from an outdated number.
Before closing this decision, answer the core query—“how to measure stairs for railing”—in one or two project-specific sentences. Include the actual location, relevant run or opening, selected system, and the remaining verification step. If the answer still depends on a generic assumption, keep the decision provisional and carry that assumption into the project checklist.
Decision checklist
- Confirm required finished height
- Measure each run separately
- Identify post and bracket faces
- Reserve stairs and gates
- Recheck final clear dimensions
Frequently asked questions
Can I use total stair run as the rail length?
No. The rail follows the slope, so use the actual sloped connection distance.
How can I estimate the diagonal?
Use the square root of total rise squared plus total run squared, then verify against the actual system endpoints.
When should I take the final measurement?
After upper and lower post or bracket positions are established.
Why record the stair angle?
It helps confirm bracket and panel compatibility with the flight.
What if the staircase has a landing?
Treat each flight and landing rail as a separate segment with its own endpoints.
Plan the next step
Add the verified stair flight to the level-run plan. The Egadis planner can keep stair geometry and associated posts connected to the rest of the project.
Use the Egadis Aluminum Railing Planner to organize the project. When the plan is verified, explore Egadis modular aluminum railing.
