Plan a deck railing layout by converting the deck perimeter into named straight runs, classifying every endpoint, reserving stairs and gates, and testing compatible panel lengths for each clear opening. Compare post count, cuts, visual rhythm, and component completeness before choosing the final bill of materials.
Convert the outline into named runs
Draw the deck from above and name each straight protected edge R1, R2, R3 and so on. A corner ends one run and starts another. Stairs and gates interrupt a run. This naming system lets the plan, measurements and order list refer to the same geometry.
Classify every endpoint
Mark each end as new post, corner, wall, existing column, stair transition or gate. Endpoints drive components. A wall connection may replace an end post; a corner may use a corner solution; a gate needs a deliberate opening and hardware. The same length between different endpoints can produce a different bill of materials.
Test panel combinations
For each run, write two or three compatible combinations. A 14-foot run could be tested as 7 + 7, 8 + 6 or another verified modular arrangement. Compare center-post location, cuts, product packs and the view. Do not finalize the combination until post and bracket dimensions are applied.
Compare Layout A and Layout B
Layout A may use fewer, longer panels and fewer intermediate posts. Layout B may use shorter panels that align with doors or furniture zones. The correct choice is the one that satisfies the system rules and improves the total project: appearance, attachment, component count, cuts, handling and budget.
Add stairs, corners and gates

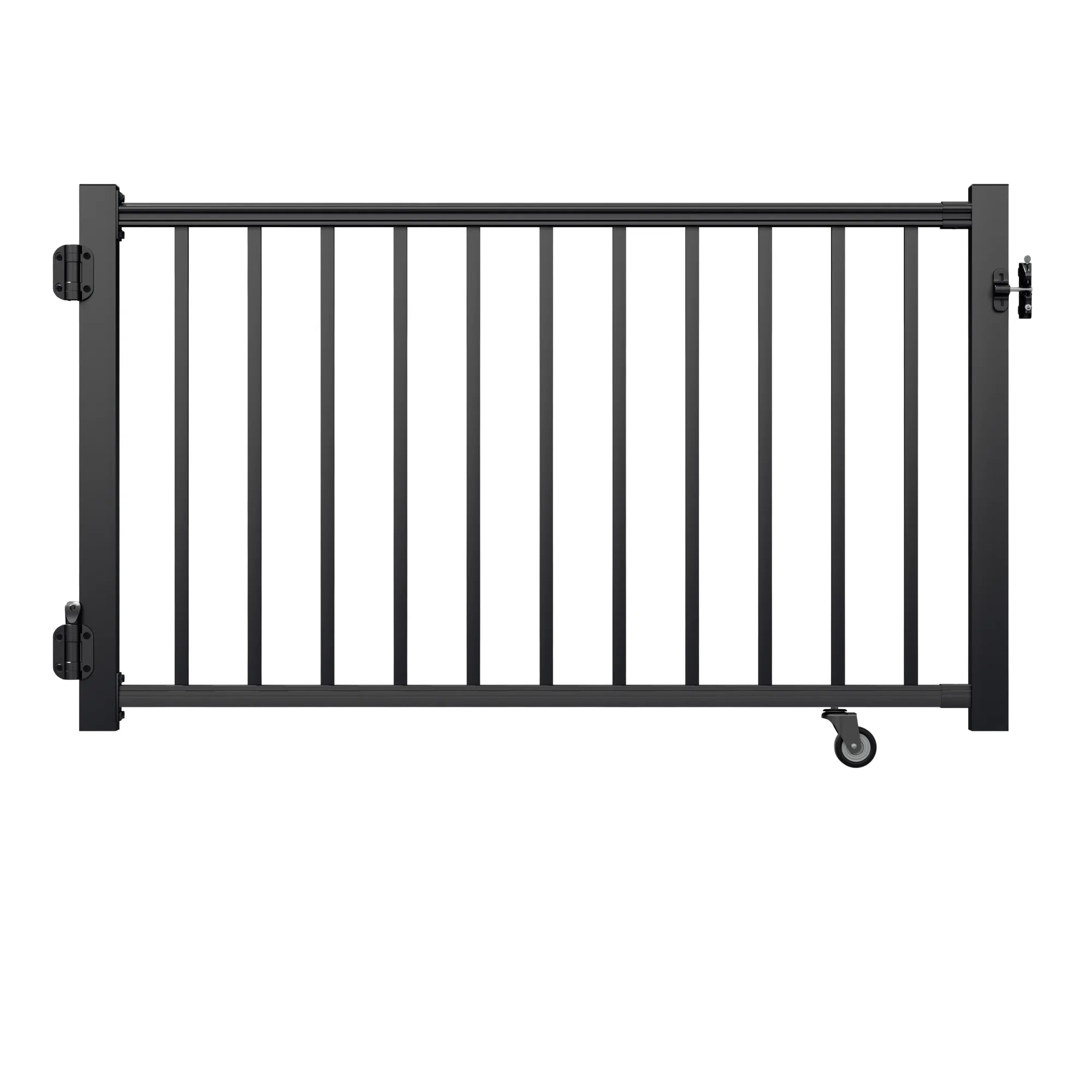

These special conditions should be planned before quantities. At each corner, decide how the rails connect. At each stair, link upper and lower posts to the adjacent level runs. For every gate, reserve the actual opening before assigning panels on either side. This sequence prevents the special components from becoming leftovers.
Validate the complete material path
The final plan should let another person trace every panel and post back to a labeled run. Verify product compatibility, current instructions, local requirements and final field dimensions. The Egadis planner is designed for this exact gap between a homeowner’s deck sketch and an organized panel, post and BOM decision.
Put the answer into practice
Take one irregular deck and produce Layout A and Layout B. Keep the protected edges unchanged while varying panel combinations and one gate position. Compare post count, cuts, view, attachment points, and BOM clarity. Select only after all five factors are visible.
The layout file should be auditable in both directions: every run points to components, and every component points back to a run or special condition. This two-way check is the most reliable defense against missing, duplicated, or unexplained quantities.
Before closing this decision, answer the core query—“deck railing layout”—in one or two project-specific sentences. Include the actual location, relevant run or opening, selected system, and the remaining verification step. If the answer still depends on a generic assumption, keep the decision provisional and carry that assumption into the project checklist.
Decision checklist
- Name every run
- Code every endpoint
- Test at least two module combinations
- Count shared physical posts once
- Audit every component against the drawing
Frequently asked questions
What is a railing run?
A straight railing segment between defined endpoints such as posts, walls, corners, stairs or gates.
How many layout options should I test?
At least two for long or irregular runs so post count, cuts and rhythm can be compared.
When should I place gates?
Reserve gate locations before assigning adjacent panel lengths.
How do corners affect the plan?
They end one run, start another and require a compatible post or connection solution.
What makes a layout ready to order?
Every run has verified endpoints, panels, posts, hardware, transitions and a final measurement path.
Plan the next step
Build the plan as named runs rather than one perimeter. The Egadis planner can test the geometry and convert the chosen modules into a clearer purchase list.
Use the Egadis Aluminum Railing Planner to organize the project. When the plan is verified, explore Egadis modular aluminum railing.
