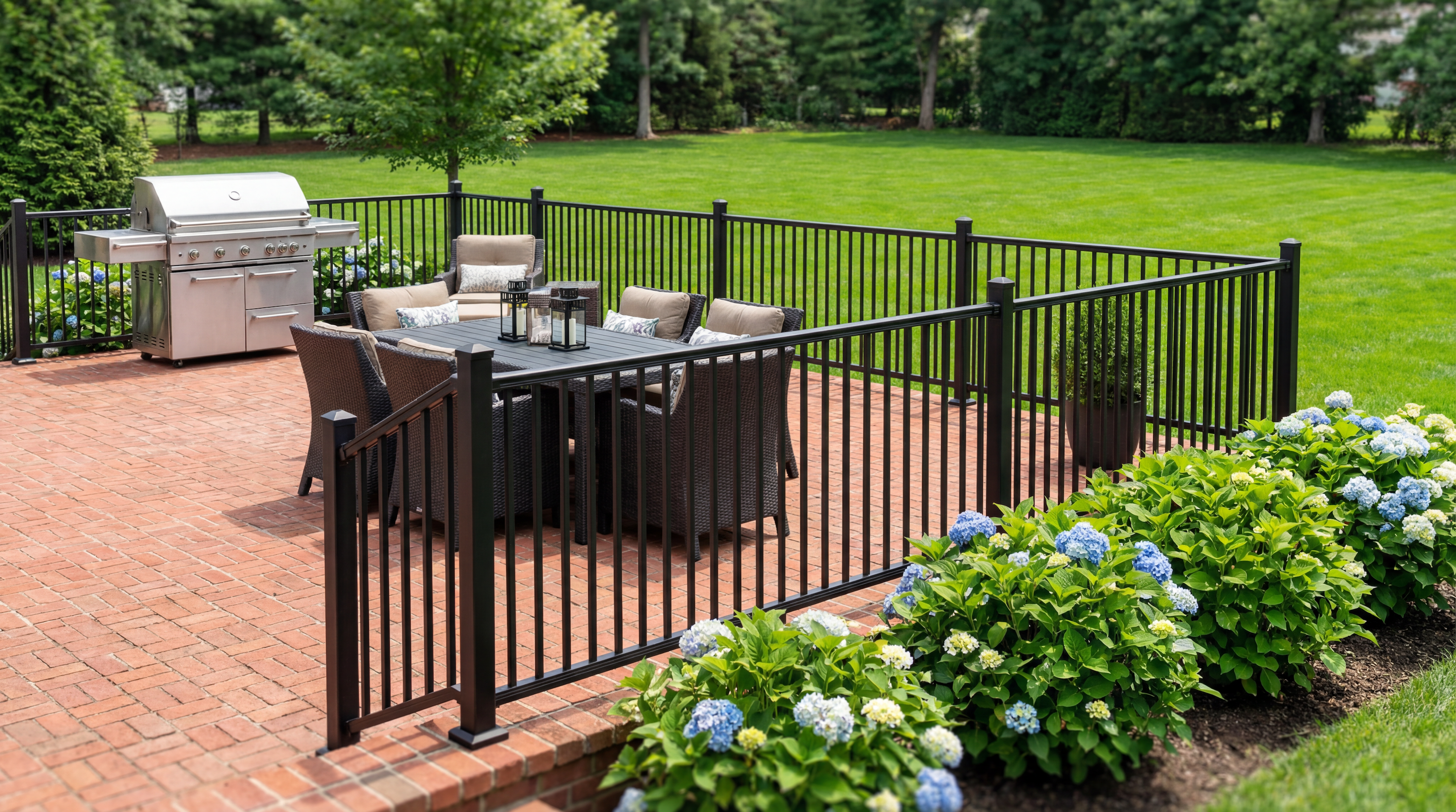

Plan railing corners by ending one run and starting the next at a shared, compatible connection. Record the corner angle, confirm the system’s post or bracket solution, and calculate each adjacent clear opening independently. Apply actual post dimensions before selecting panel lengths or planning cuts.
Treat the corner as a shared node
A corner is not extra linear footage. It is one physical connection where two runs meet. Name it K1 and use K1 as the end of the first run and the start of the second. This keeps the material list from counting the location twice.
Record the actual angle
Do not assume every turn is 90 degrees. Decks with bays, clipped corners or irregular property lines can create other angles. Confirm whether the selected railing system provides an adjustable connection or a specific angled-post method. Egadis project information includes a universal corner connection concept for non-90-degree layouts; verify the current product configuration and angle range.
Calculate adjacent runs independently
Post width and bracket faces consume space in both directions. Determine the connection geometry, then measure R1 to K1 and K1 to R2 under the system’s method. A panel combination that fits one side does not validate the other side.
Balance the bays near the turn
Short leftover bays are especially visible at a corner because two elevations meet there. Test module combinations that create a calm transition. For example, an 11-foot run approaching the corner might use 6 + 5 rather than 8 + a heavily cut remainder, depending on available modules and the final clear openings.
Plan installation sequence
Establish the corner and end positions, then dry-check the adjacent runs before cutting. If the connection permits angle adjustment, confirm the angle while the posts are plumb and the deck geometry is verified. Keep run labels on panels and hardware so left and right conditions do not become mixed.
Use corners to organize the BOM
The corner record should list its post or connection, two adjacent brackets, associated runs and any special fasteners. A planner that understands connected segments can carry this relationship into the material list. That is more reliable than adding a generic corner accessory after panel quantities are calculated.
Put the answer into practice
Measure the corner angle and label the two connection faces before choosing adjacent panels. Test one layout that balances the approach bay and another that balances the departure bay. The final corner should resolve both views, not only one side.
The layout file should be auditable in both directions: every run points to components, and every component points back to a run or special condition. This two-way check is the most reliable defense against missing, duplicated, or unexplained quantities.
Before closing this decision, answer the core query—“how to plan railing around corners”—in one or two project-specific sentences. Include the actual location, relevant run or opening, selected system, and the remaining verification step. If the answer still depends on a generic assumption, keep the decision provisional and carry that assumption into the project checklist.
Decision checklist
- Name every run
- Code every endpoint
- Test at least two module combinations
- Count shared physical posts once
- Audit every component against the drawing
Frequently asked questions
Does a corner need a special post?
It needs the compatible corner solution defined for the selected system, which may be a post, bracket set or adjustable connection.
How do I measure a non-90-degree turn?
Record the actual angle and adjacent clear runs, then confirm the system’s supported connection method.
Do I count the corner twice?
No. Count the shared physical location once while assigning it to both adjacent runs.
Should I cut panels before setting the corner?
Use rough lengths for planning; verify corner and endpoint positions before final cuts.
How can I avoid a short bay at the corner?
Test alternative module combinations on the approaching run and balance both sides together.
